An open, scalable, flexible visualization platform

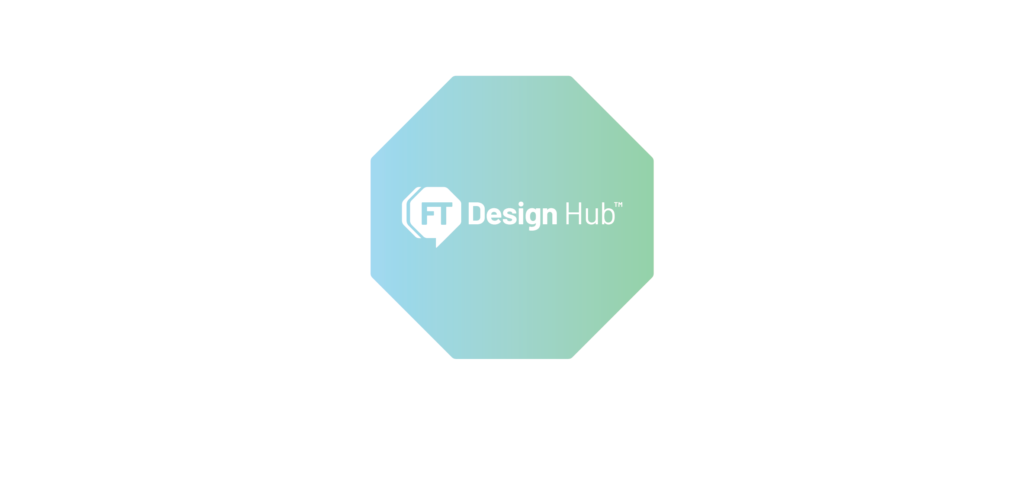

Welcome to a new platform that accelerates value delivery with modern technologies, innovative designs and scalable deployment options within FactoryTalk Design Hub
COMING SOON IN 2022
An open, scalable, flexible visualization platform
Welcome to a new platform that accelerates value delivery with modern technologies, innovative designs and scalable deployment options
is a new cloud-native software product built from the ground up to improve system design efficiency.
is a new product addition to the Rockwell Automation visualization portfolio. Known as “visualization for visionaries,” FactoryTalk Optix is the first cloud-enabled HMI product to be launched within FactoryTalk Design Hub.
is an end-to-end automation design solution where users can design, program, simulate, emulate, and virtually commission in one cloud environment.
provides secure, cloud-native centralized storage for manufacturing design teams. With its modern version and access control, FactoryTalk Vault with advanced Design Tools allows for greater insights into designs through in-depth analysis of controller projects.
enables secure connections to equipment, allowing teams to respond to needs faster and rapidly resolve production issues from anywhere.
– FT OPTIX HIGHLIGHTS –
DESIGN OPTIONS
Design and test your HMI projects in ways you have only imagined
- Design & test your HMI projects directly from a web browser
- Collaborative workflows allow modifications from anywhere, anytime
- Version management tracks changes keeps track of who did what and when
- Build project dynamically, by scripting, or even at runtime
DEPLOYMENT OPTIONS
Create your application once and deploy to any device
- Flexible host hardware
- Panel • Station • Distributed
- Pay only for what you use
GRAPHIC OPTIONS
Style your HMI graphics for a global audience
- Responsive graphics
- Reporting, dashboarding
- Style sheets
- Multi-language
EXTENSIBLE OPTIONS
Built from the ground up with OPC UA and incredible extensibility
- Library management
- 3rd party drivers
- IOT native connectivity
- Full support of OPC/UA companion specs
- Open interface with C# scripting
Improving Processes, Efficiency and Deliverables
FactoryTalk Optix can help improve your process, efficiency and deliverables – in one easy to access tool. Take advantage of new levels of collaboration, scalability and interoperability to achieve your HMI vision.
New SaaS-enabled workflows will enable your team to collaborate any time, from anywhere, thanks to built-in change tracking and versioning that automatically keeps track of who did what and when.
– Why cloud? –
Accelerate Time to Value
Harness the cloud and become more agile by deploying quickly and scaling based on demand. Use the increased efficiency to beat competitors to market, get to profit faster and improve return on investment.
Boost Collaboration
Transform the way you collaborate! The cloud makes it easier for suppliers, employees and customers to collaborate from anywhere in the world.
Never Lose Project Files
Files are saved to a secure FactoryTalk Vault enabling secure storage, dedicated private space, file recovery capabilities and access by anyone from anywhere with internet access and the necessary permissions.
Reduce Cost
With remote access you don’t need costly travel time and expenses to help. Customers will appreciate this – and so will your bank account.

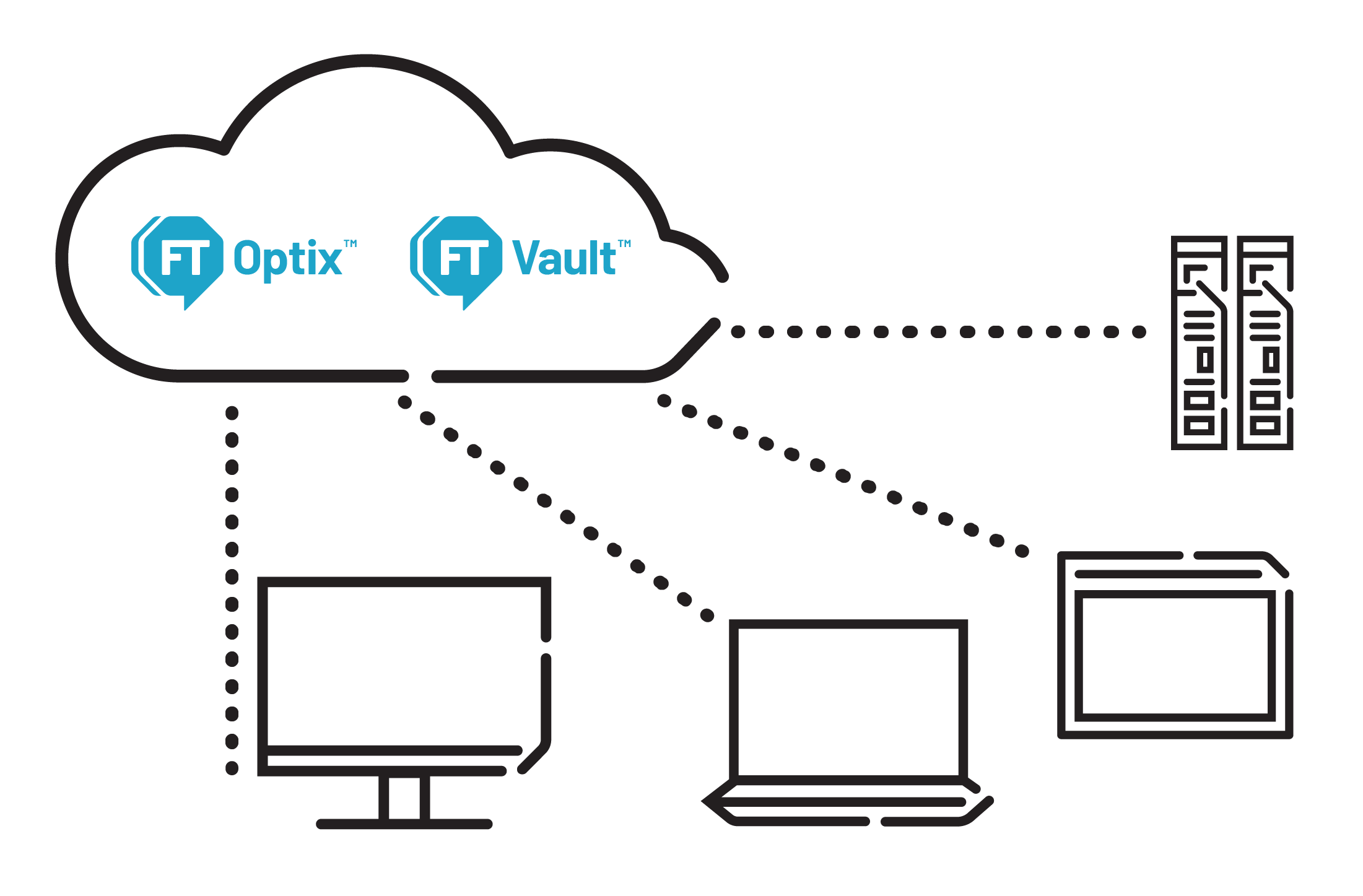

Build your HMI projects wherever you are
Don’t have FactoryTalk Optix installed on your PC? No problem!
- Design, test, and deploy your HMI projects directly from a web browser using cloud-based FactoryTalk Optix Studio, available from FactoryTalk Design Hub
- Collaborative workflows allow modifications anywhere, anytime
No internet connection? No problem!
- Install FactoryTalk Optix Studio locally on your laptop
- Seamlessly transitions from browser to desktop app for disconnected editing and deployment
Not sure which HMI device you’ll be using? No problem!
- Build projects and deploy dynamically – even at runtime
COMING SOON IN 2023

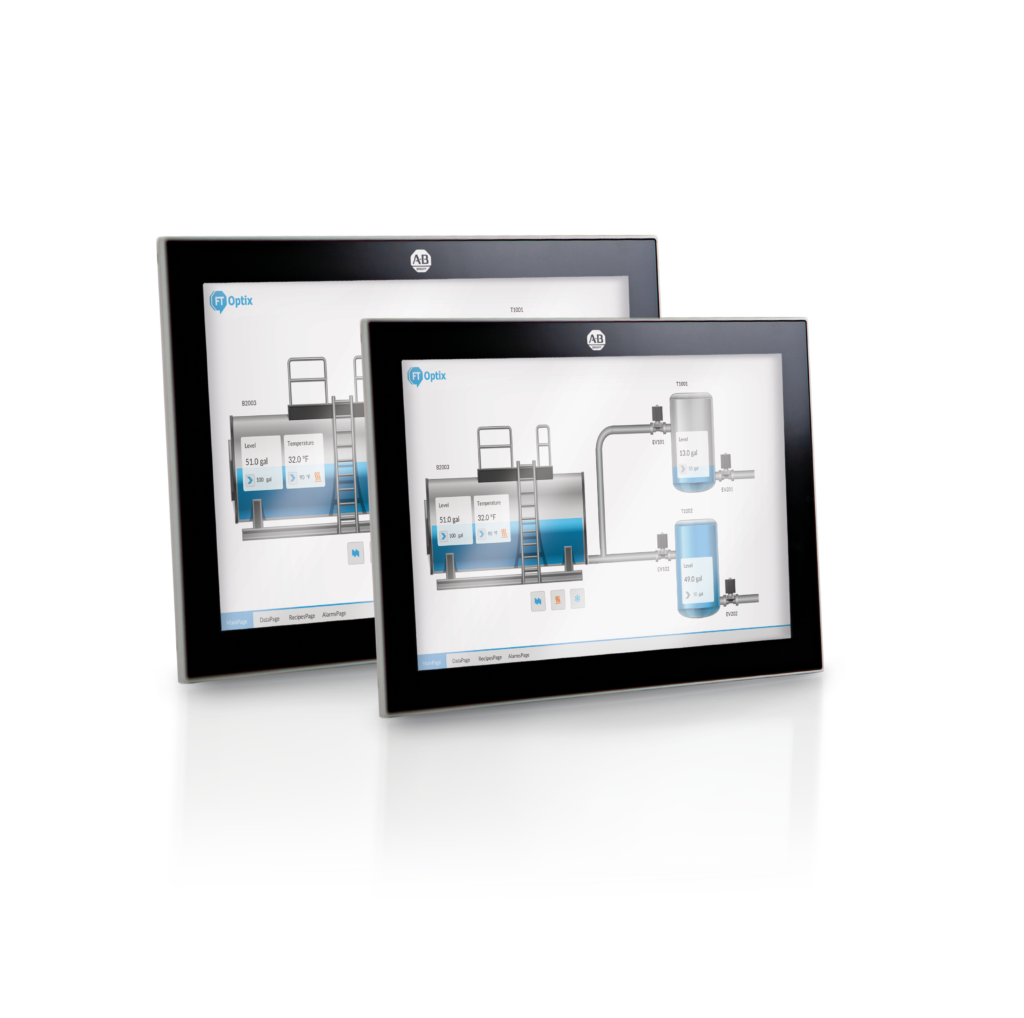

Optix Panels Compact and Standard based on FT Optix Software
- Integrated solutions to create modern, ergonomic, flexible native interfaces with object-oriented and cross-platform modular architecture with integrated FT Remote Assistance for maximum connectivity
- Full industrial interoperability for M2M scenarios and interfacing with MES and ERP systems as a result of OPC UA protocol native support, simple two-way communication with Cloud infrastructures via MQTT protocol
- Compact and Standard families with different set of “feature tokens” to enable desired functions and different hardware features to best meet your needs
- Available in a wide range of LCD size from 7″ to 21,5 with protection grade up to IP69K
- Resistive or PCAP Multitouch touchscreen technology
COMPARISON TABLE
| OPTIX PANEL COMPACT | OPTIX PANEL STANDARD | |
|---|---|---|
| HMI SOFTWARE | FT OPTIX (S: 8-11 token) | FT OPTIX (M: 12-15 token) |
| REMOTE ASSISTANCE SOFTWARE | FTRA Pro | FTRA Pro |
| CPU | i.MX 8M Mini | i.MX 8M Plus |
| RAM | 1GB | 2GB |
| Main Storage | 10GB | 21GB |
| Storage expansions |
 |
MicroSD external access |
| USB connections | 1x USB 2.0 | 2x USB 3.0 |
| Ethernet connections | 1x Gigabit | 2x Gigabit |
| Serial connections | 1x DB9M, RS232/422/485 | 1x DB9M, RS232/422/485 |
| LCD size | 4.3", 7" (Wide) | 8.4" ÷ 15" (4:3) |
| 7" ÷ 21.5" (wide) | ||
| Bezel types | • Aluminium, Resistive touch (Wide) | • Aluminium, Resistive touch (4:3 + Wide) |
| • Aluminum+Glass, PCAP multitouch (Wide) | • Aluminum+Glass, PCAP multitouch (Wide) | |
| • Aluminium TrueFlat, Resistive touch (4:3) | ||
| • Stainless Steel IP69K, Resistive touch (Wide) | ||
| Protection grade | up to IP65 | up to IP69K |
| CE |
 |
|
| UL |
|
|
| UKCA (UK) |
|
|
| KC (S Korea) |
|
|
| RCM (Austr+NZ) |
|
|
| Morocco |
|
|
| ODVA |
|
|
Let's start a discovery journey with OPTIX !
For more information
#STRONGERTOGETHER
Project created in collaboration between Rockwell Automation and ASEM S.r.l.
